u-boot crashes if mass-storage devices are connected via USB-C
Hello. user kettenis aka "Mark Kettenis" guided me write my bug report to this email. "bluetail: please report these usb bugs upstream; they're almost certainly not hardware-specific"
But before, jannau aka Janne Grunau asked me to give the version output of `pacman -Qi uboot-asahi` to which I replied 2022.10.asahi1-1. Because I had the feeling that sometimes the reboot with a USB-C connected device succeeds, depending how many bays are populated. But I have no evidence for that. I did try other USB Type C Cables, but without success of fixing the underlying issue. The device works fine via USB Type A or C fine if plugged in AFTER u-boot. But, u-boot does not support USB Type A yet, which is why it wont break my boot sequence with USB Type A.

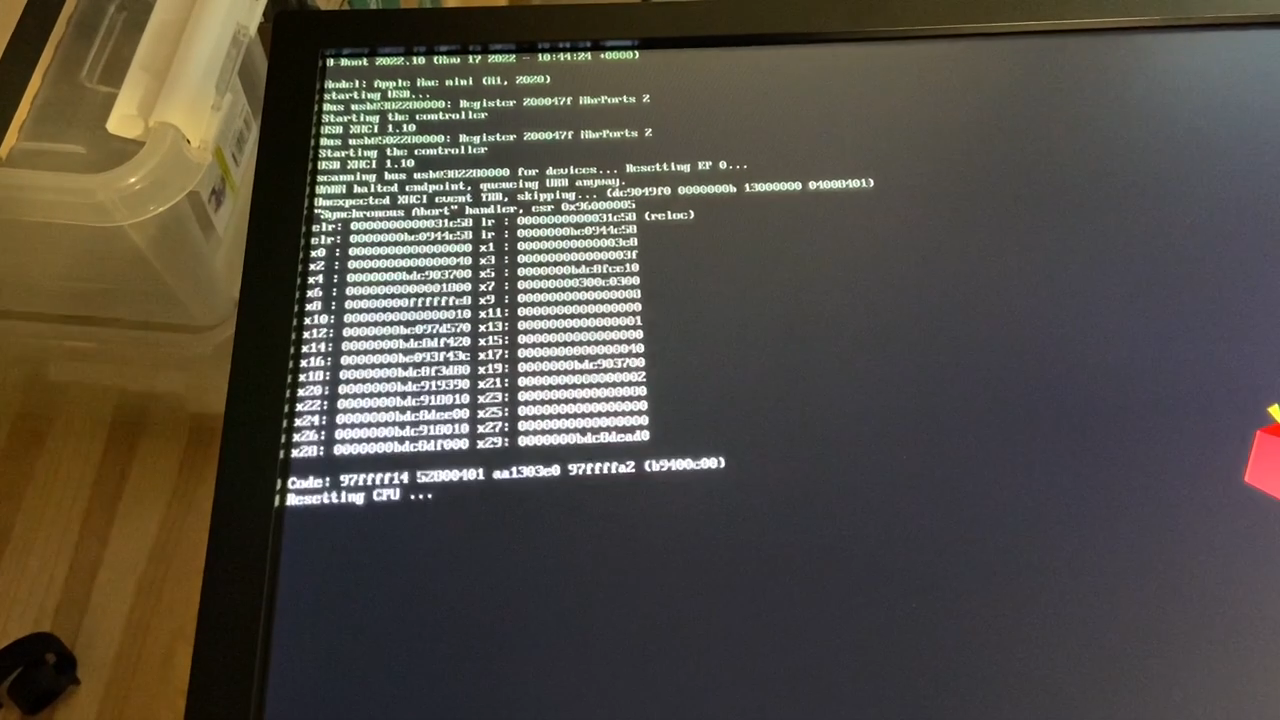

Essentially, I connect a mass-storage device to the USB-C port of a Mac Mini 2020 (M1), and it leads to the issue in the attachment. I was able to reproduce it with Icy Box IB-3810 and ICY BOX IB-3805. Initially I thought this issue was only for some devices (also attached here) https://github.com/AsahiLinux/u-boot/issues/4 but it appears this might be a issue that is with many devices.
If you need any more information, please feel free to ask. I am very eager to have this issue fixed because it seems to be a very broad issue with mass media storage in general. uname-r returns 6.1.0-asahi-2-2-edge-ARCH
Best regards, bluetail
+Marek Vasut +Bin Meng +Mark Kettenis +Tom Rini
On Wed, 1 Mar 2023 at 08:12, bluetail a-development+asahi@posteo.de wrote:
Hello. user kettenis aka "Mark Kettenis" guided me write my bug report to this email. "bluetail: please report these usb bugs upstream; they're almost certainly not hardware-specific"
But before, jannau aka Janne Grunau asked me to give the version output of `pacman -Qi uboot-asahi` to which I replied 2022.10.asahi1-1. Because I had the feeling that sometimes the reboot with a USB-C connected device succeeds, depending how many bays are populated. But I have no evidence for that. I did try other USB Type C Cables, but without success of fixing the underlying issue. The device works fine via USB Type A or C fine if plugged in AFTER u-boot. But, u-boot does not support USB Type A yet, which is why it wont break my boot sequence with USB Type A.
Essentially, I connect a mass-storage device to the USB-C port of a Mac Mini 2020 (M1), and it leads to the issue in the attachment. I was able to reproduce it with Icy Box IB-3810 and ICY BOX IB-3805. Initially I thought this issue was only for some devices (also attached here) https://github.com/AsahiLinux/u-boot/issues/4 but it appears this might be a issue that is with many devices.
If you need any more information, please feel free to ask. I am very eager to have this issue fixed because it seems to be a very broad issue with mass media storage in general. uname-r returns 6.1.0-asahi-2-2-edge-ARCH
Best regards, bluetail -- aka zDEFz
On 3/1/23 21:34, Simon Glass wrote:
+Marek Vasut +Bin Meng +Mark Kettenis +Tom Rini
On Wed, 1 Mar 2023 at 08:12, bluetail a-development+asahi@posteo.de wrote:
Hello. user kettenis aka "Mark Kettenis" guided me write my bug report to this email. "bluetail: please report these usb bugs upstream; they're almost certainly not hardware-specific"
But before, jannau aka Janne Grunau asked me to give the version output of `pacman -Qi uboot-asahi` to which I replied 2022.10.asahi1-1. Because I had the feeling that sometimes the reboot with a USB-C connected device succeeds, depending how many bays are populated. But I have no evidence for that. I did try other USB Type C Cables, but without success of fixing the underlying issue. The device works fine via USB Type A or C fine if plugged in AFTER u-boot. But, u-boot does not support USB Type A yet, which is why it wont break my boot sequence with USB Type A.
Essentially, I connect a mass-storage device to the USB-C port of a Mac Mini 2020 (M1), and it leads to the issue in the attachment. I was able to reproduce it with Icy Box IB-3810 and ICY BOX IB-3805. Initially I thought this issue was only for some devices (also attached here) https://github.com/AsahiLinux/u-boot/issues/4 but it appears this might be a issue that is with many devices.
If you need any more information, please feel free to ask. I am very eager to have this issue fixed because it seems to be a very broad issue with mass media storage in general. uname-r returns 6.1.0-asahi-2-2-edge-ARCH
Would it be possible to check whether current u-boot/master works any better ?
Sure. Please send some instructions my way on how to proceed. I know there is a u-boot manual, but I don't wanna mess up my mac mini m1 system. So I'd stick with instructions on your end. Ideally, the action is reversible. I always keep complete system backups, though. My current version is asahi-v2022.10-1 as far as I can tell. I'm used to git, so pulling and making would be the slightest issue.
All the best and thanks,
--- aka zDEFz
On 01.03.2023 23:51, Marek Vasut wrote:
On 3/1/23 21:34, Simon Glass wrote:
+Marek Vasut +Bin Meng +Mark Kettenis +Tom Rini
On Wed, 1 Mar 2023 at 08:12, bluetail a-development+asahi@posteo.de wrote:
Hello. user kettenis aka "Mark Kettenis" guided me write my bug report to this email. "bluetail: please report these usb bugs upstream; they're almost certainly not hardware-specific"
But before, jannau aka Janne Grunau asked me to give the version output of `pacman -Qi uboot-asahi` to which I replied 2022.10.asahi1-1. Because I had the feeling that sometimes the reboot with a USB-C connected device succeeds, depending how many bays are populated. But I have no evidence for that. I did try other USB Type C Cables, but without success of fixing the underlying issue. The device works fine via USB Type A or C fine if plugged in AFTER u-boot. But, u-boot does not support USB Type A yet, which is why it wont break my boot sequence with USB Type A.
Essentially, I connect a mass-storage device to the USB-C port of a Mac Mini 2020 (M1), and it leads to the issue in the attachment. I was able to reproduce it with Icy Box IB-3810 and ICY BOX IB-3805. Initially I thought this issue was only for some devices (also attached here) https://github.com/AsahiLinux/u-boot/issues/4 but it appears this might be a issue that is with many devices.
If you need any more information, please feel free to ask. I am very eager to have this issue fixed because it seems to be a very broad issue with mass media storage in general. uname-r returns 6.1.0-asahi-2-2-edge-ARCH
Would it be possible to check whether current u-boot/master works any better ?
On 2023-03-01 23:51:14 +0100, Marek Vasut wrote:
On 3/1/23 21:34, Simon Glass wrote:
+Marek Vasut +Bin Meng +Mark Kettenis +Tom Rini
On Wed, 1 Mar 2023 at 08:12, bluetail a-development+asahi@posteo.de wrote:
Hello. user kettenis aka "Mark Kettenis" guided me write my bug report to this email. "bluetail: please report these usb bugs upstream; they're almost certainly not hardware-specific"
But before, jannau aka Janne Grunau asked me to give the version output of `pacman -Qi uboot-asahi` to which I replied 2022.10.asahi1-1. Because I had the feeling that sometimes the reboot with a USB-C connected device succeeds, depending how many bays are populated. But I have no evidence for that. I did try other USB Type C Cables, but without success of fixing the underlying issue. The device works fine via USB Type A or C fine if plugged in AFTER u-boot. But, u-boot does not support USB Type A yet, which is why it wont break my boot sequence with USB Type A.
Essentially, I connect a mass-storage device to the USB-C port of a Mac Mini 2020 (M1), and it leads to the issue in the attachment. I was able to reproduce it with Icy Box IB-3810 and ICY BOX IB-3805. Initially I thought this issue was only for some devices (also attached here) https://github.com/AsahiLinux/u-boot/issues/4 but it appears this might be a issue that is with many devices.
If you need any more information, please feel free to ask. I am very eager to have this issue fixed because it seems to be a very broad issue with mass media storage in general. uname-r returns 6.1.0-asahi-2-2-edge-ARCH
Would it be possible to check whether current u-boot/master works any better
Reproduced with b0eda49bc9b0 ("Merge tag 'u-boot-at91-fixes-2023.04-a' of https://source.denx.de/u-boot/custodians/u-boot-at91") and Icy Box IB-3804-C31 (same design as IB-3805/IB-3810 but just a single 4 port USB3 hub + 4 independent asmedia usb3 to sata converters).
| scanning bus usb@b02280000 for devices... Device NOT ready | Request Sense returned 02 3A 00 | Device NOT ready | Request Sense returned 02 3A 00 | Resetting EP 0... | WARN halted endpoint, queueing URB anyway. | Unexpected XHCI event TRB, skipping... (c9208350 0000010f 13000000 04008401) | "Synchronous Abort" handler, esr 0x96000005 | elr: 000000000003934c lr : 000000000003934c (reloc) | elr: 0000010fcd24034c lr : 0000010fcd24034c | x0 : 0000000000000000 x1 : 00000000000003e8 | x2 : 0000000000000040 x3 : 000000000000003f | x4 : 0000010fc92065c0 x5 : 0000010fc9208210 | x6 : 0000000000001800 x7 : 00000000300c0300 | x8 : 0000000000000424 x9 : 0000000000000004 | x10: 00000000ffffffe8 x11: 0000000000000010 | x12: 0000000000010000 x13: 0000000000000001 | x14: 0000010fc91c6720 x15: 0000000000000021 | x16: 0000010fcd23a414 x17: 0000000000000040 | x18: 0000010fc91e7d70 x19: 0000010fc92065c0 | x20: 0000010fc9443630 x21: 0000000000000002 | x22: 0000010fc94406f0 x23: 0000000000000080 | x24: 0000000000000000 x25: 0000010fc91c6100 | x26: 0000010fc91c6100 x27: 0000010fc94406f0 | x28: 0000000000000000 x29: 0000010fc91c5db0 | | Code: 97ffff3c 52800401 aa1303e0 97ffffa2 (b9400c00) Resetting CPU ...
The usb2sata bridges can powered off individually. u-boot crashes with just a single bridge with HDD powered on. Works if all bridges are off or don't have a HDD connected.
The bridge reports under linux as
Bus 005 Device 003: ID 174c:55aa ASMedia Technology Inc. ASM1051E SATA 6Gb/s bridge, ASM1053E SATA 6Gb/s bridge, ASM1153 SATA 3Gb/s bridge, ASM1153E SATA 6Gb/s bridge
best regards
Janne
On 3/2/23 10:14, Janne Grunau wrote:
On 2023-03-01 23:51:14 +0100, Marek Vasut wrote:
On 3/1/23 21:34, Simon Glass wrote:
+Marek Vasut +Bin Meng +Mark Kettenis +Tom Rini
On Wed, 1 Mar 2023 at 08:12, bluetail a-development+asahi@posteo.de wrote:
Hello. user kettenis aka "Mark Kettenis" guided me write my bug report to this email. "bluetail: please report these usb bugs upstream; they're almost certainly not hardware-specific"
But before, jannau aka Janne Grunau asked me to give the version output of `pacman -Qi uboot-asahi` to which I replied 2022.10.asahi1-1. Because I had the feeling that sometimes the reboot with a USB-C connected device succeeds, depending how many bays are populated. But I have no evidence for that. I did try other USB Type C Cables, but without success of fixing the underlying issue. The device works fine via USB Type A or C fine if plugged in AFTER u-boot. But, u-boot does not support USB Type A yet, which is why it wont break my boot sequence with USB Type A.
Essentially, I connect a mass-storage device to the USB-C port of a Mac Mini 2020 (M1), and it leads to the issue in the attachment. I was able to reproduce it with Icy Box IB-3810 and ICY BOX IB-3805. Initially I thought this issue was only for some devices (also attached here) https://github.com/AsahiLinux/u-boot/issues/4 but it appears this might be a issue that is with many devices.
If you need any more information, please feel free to ask. I am very eager to have this issue fixed because it seems to be a very broad issue with mass media storage in general. uname-r returns 6.1.0-asahi-2-2-edge-ARCH
Would it be possible to check whether current u-boot/master works any better
Reproduced with b0eda49bc9b0 ("Merge tag 'u-boot-at91-fixes-2023.04-a' of https://source.denx.de/u-boot/custodians/u-boot-at91") and Icy Box IB-3804-C31 (same design as IB-3805/IB-3810 but just a single 4 port USB3 hub + 4 independent asmedia usb3 to sata converters).
| scanning bus usb@b02280000 for devices... Device NOT ready | Request Sense returned 02 3A 00 | Device NOT ready | Request Sense returned 02 3A 00 | Resetting EP 0... | WARN halted endpoint, queueing URB anyway. | Unexpected XHCI event TRB, skipping... (c9208350 0000010f 13000000 04008401) | "Synchronous Abort" handler, esr 0x96000005 | elr: 000000000003934c lr : 000000000003934c (reloc) | elr: 0000010fcd24034c lr : 0000010fcd24034c
Could you decode the trace and check where exactly this exception occurred ?
It should be enough to run "aarch64-...-objdump -lSD u-boot | less" on the U-Boot which matches the one which generated the trace, and then look up the lr/elr address in that trace. That should point you to the exact place in code where the exception occurred .
On 2023-03-02 18:33:15 +0100, Marek Vasut wrote:
On 3/2/23 10:14, Janne Grunau wrote:
On 2023-03-01 23:51:14 +0100, Marek Vasut wrote:
On 3/1/23 21:34, Simon Glass wrote:
+Marek Vasut +Bin Meng +Mark Kettenis +Tom Rini
On Wed, 1 Mar 2023 at 08:12, bluetail a-development+asahi@posteo.de wrote:
Essentially, I connect a mass-storage device to the USB-C port of a Mac Mini 2020 (M1), and it leads to the issue in the attachment. I was able to reproduce it with Icy Box IB-3810 and ICY BOX IB-3805. Initially I thought this issue was only for some devices (also attached here) https://github.com/AsahiLinux/u-boot/issues/4 but it appears this might be a issue that is with many devices.
If you need any more information, please feel free to ask. I am very eager to have this issue fixed because it seems to be a very broad issue with mass media storage in general. uname-r returns 6.1.0-asahi-2-2-edge-ARCH
Would it be possible to check whether current u-boot/master works any better
Reproduced with b0eda49bc9b0 ("Merge tag 'u-boot-at91-fixes-2023.04-a' of https://source.denx.de/u-boot/custodians/u-boot-at91") and Icy Box IB-3804-C31 (same design as IB-3805/IB-3810 but just a single 4 port USB3 hub + 4 independent asmedia usb3 to sata converters).
| scanning bus usb@b02280000 for devices... Device NOT ready | Request Sense returned 02 3A 00 | Device NOT ready | Request Sense returned 02 3A 00 | Resetting EP 0... | WARN halted endpoint, queueing URB anyway. | Unexpected XHCI event TRB, skipping... (c9208350 0000010f 13000000 04008401) | "Synchronous Abort" handler, esr 0x96000005 | elr: 000000000003934c lr : 000000000003934c (reloc) | elr: 0000010fcd24034c lr : 0000010fcd24034c
Could you decode the trace and check where exactly this exception occurred ?
It should be enough to run "aarch64-...-objdump -lSD u-boot | less" on the U-Boot which matches the one which generated the trace, and then look up the lr/elr address in that trace. That should point you to the exact place in code where the exception occurred .
Slightly different binary due to unrelated chnages:
| scanning bus usb@702280000 for devices... 1 USB Device(s) found | scanning bus usb@b02280000 for devices... 1 USB Device(s) found | scanning bus usb@f02280000 for devices... 1 USB Device(s) found | scanning bus usb@1302280000 for devices... 2 USB Device(s) found | scanning bus usb@702280000 for devices... 1 USB Device(s) found | scanning bus usb@b02280000 for devices... Resetting EP 0... | WARN halted endpoint, queueing URB anyway. | Unexpected XHCI event TRB, skipping... (c92247b0 0000010f 13000000 02008400) | "Synchronous Abort" handler, esr 0x96000005 | elr: 0000000000039d9c lr : 0000000000039d9c (reloc) | elr: 0000010fcd240d9c lr : 0000010fcd240d9c | x0 : 0000000000000000 x1 : 00000000000003e8 | x2 : 0000000000000040 x3 : 000000000000003f | x4 : 0000010fc9223040 x5 : 0000010fc921ef90 | x6 : 0000000000001800 x7 : 00000000300c0300 | x8 : 0000000000000424 x9 : 0000000000000008 | x10: 00000000ffffffe8 x11: 0000000000000010 | x12: 0000000000010000 x13: 0000000000000001 | x14: 0000010fc91ba320 x15: 0000000000000021 | x16: 0000010fcd23addc x17: 0000000000000040 | x18: 0000010fc91e7d70 x19: 0000010fc9223040 | x20: 0000010fc9234b20 x21: 0000000000000002 | x22: 0000010fc9233790 x23: 0000000000000080 | x24: 0000000000000000 x25: 0000010fc91b9d00 | x26: 0000010fc91b9d00 x27: 0000010fc9233790 | x28: 0000000000000000 x29: 0000010fc91b99b0 | | Code: 97ffff3c 52800401 aa1303e0 97ffffa2 (b9400c00)
objdump -lSD u-boot | grep -C 12 ' 39d9c'
| Disassembly of section .text_rest: | ... | 39d84: f9400c36 ldr x22, [x1, #24] | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:544 | xhci_queue_command(ctrl, 0, udev->slot_id, ep_index, TRB_STOP_RING); | 39d88: d2800001 mov x1, #0x0 // #0 | 39d8c: 97ffff3c bl 39a7c <xhci_queue_command> | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:546 | event = xhci_wait_for_event(ctrl, TRB_TRANSFER); | 39d90: 52800401 mov w1, #0x20 // #32 | 39d94: aa1303e0 mov x0, x19 | 39d98: 97ffffa2 bl 39c20 <xhci_wait_for_event> | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:547 | field = le32_to_cpu(event->trans_event.flags); | 39d9c: b9400c00 ldr w0, [x0, #12] | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:548 | BUG_ON(TRB_TO_SLOT_ID(field) != udev->slot_id); | 39da0: b9494681 ldr w1, [x20, #2372] | 39da4: 6b40603f cmp w1, w0, lsr #24 | 39da8: 54000180 b.eq 39dd8 <abort_td+0x8c> // b.none | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:548 (discriminator 1) | 39dac: 90000143 adrp x3, 61000 <crc16_tab+0x170> | 39db0: 913d0863 add x3, x3, #0xf42 | 39db4: 52804482 mov w2, #0x224 // #548 | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:549 (discriminator 1) | BUG_ON(TRB_TO_EP_INDEX(field) != ep_index); | 39db8: b0000181 adrp x1, 6a000 <names.0+0x11cb>
not immediately obvious to me what's the problem. x0 looks valid before the ldr.
best regards
Janne
On 3/2/23 19:51, Janne Grunau wrote:
On 2023-03-02 18:33:15 +0100, Marek Vasut wrote:
On 3/2/23 10:14, Janne Grunau wrote:
On 2023-03-01 23:51:14 +0100, Marek Vasut wrote:
On 3/1/23 21:34, Simon Glass wrote:
+Marek Vasut +Bin Meng +Mark Kettenis +Tom Rini
On Wed, 1 Mar 2023 at 08:12, bluetail a-development+asahi@posteo.de wrote:
Essentially, I connect a mass-storage device to the USB-C port of a Mac Mini 2020 (M1), and it leads to the issue in the attachment. I was able to reproduce it with Icy Box IB-3810 and ICY BOX IB-3805. Initially I thought this issue was only for some devices (also attached here) https://github.com/AsahiLinux/u-boot/issues/4 but it appears this might be a issue that is with many devices.
If you need any more information, please feel free to ask. I am very eager to have this issue fixed because it seems to be a very broad issue with mass media storage in general. uname-r returns 6.1.0-asahi-2-2-edge-ARCH
Would it be possible to check whether current u-boot/master works any better
Reproduced with b0eda49bc9b0 ("Merge tag 'u-boot-at91-fixes-2023.04-a' of https://source.denx.de/u-boot/custodians/u-boot-at91") and Icy Box IB-3804-C31 (same design as IB-3805/IB-3810 but just a single 4 port USB3 hub + 4 independent asmedia usb3 to sata converters).
| scanning bus usb@b02280000 for devices... Device NOT ready | Request Sense returned 02 3A 00 | Device NOT ready | Request Sense returned 02 3A 00 | Resetting EP 0... | WARN halted endpoint, queueing URB anyway. | Unexpected XHCI event TRB, skipping... (c9208350 0000010f 13000000 04008401) | "Synchronous Abort" handler, esr 0x96000005 | elr: 000000000003934c lr : 000000000003934c (reloc) | elr: 0000010fcd24034c lr : 0000010fcd24034c
Could you decode the trace and check where exactly this exception occurred ?
It should be enough to run "aarch64-...-objdump -lSD u-boot | less" on the U-Boot which matches the one which generated the trace, and then look up the lr/elr address in that trace. That should point you to the exact place in code where the exception occurred .
Slightly different binary due to unrelated chnages:
| scanning bus usb@702280000 for devices... 1 USB Device(s) found | scanning bus usb@b02280000 for devices... 1 USB Device(s) found | scanning bus usb@f02280000 for devices... 1 USB Device(s) found | scanning bus usb@1302280000 for devices... 2 USB Device(s) found | scanning bus usb@702280000 for devices... 1 USB Device(s) found | scanning bus usb@b02280000 for devices... Resetting EP 0... | WARN halted endpoint, queueing URB anyway. | Unexpected XHCI event TRB, skipping... (c92247b0 0000010f 13000000 02008400) | "Synchronous Abort" handler, esr 0x96000005 | elr: 0000000000039d9c lr : 0000000000039d9c (reloc) | elr: 0000010fcd240d9c lr : 0000010fcd240d9c | x0 : 0000000000000000 x1 : 00000000000003e8 | x2 : 0000000000000040 x3 : 000000000000003f | x4 : 0000010fc9223040 x5 : 0000010fc921ef90 | x6 : 0000000000001800 x7 : 00000000300c0300 | x8 : 0000000000000424 x9 : 0000000000000008 | x10: 00000000ffffffe8 x11: 0000000000000010 | x12: 0000000000010000 x13: 0000000000000001 | x14: 0000010fc91ba320 x15: 0000000000000021 | x16: 0000010fcd23addc x17: 0000000000000040 | x18: 0000010fc91e7d70 x19: 0000010fc9223040 | x20: 0000010fc9234b20 x21: 0000000000000002 | x22: 0000010fc9233790 x23: 0000000000000080 | x24: 0000000000000000 x25: 0000010fc91b9d00 | x26: 0000010fc91b9d00 x27: 0000010fc9233790 | x28: 0000000000000000 x29: 0000010fc91b99b0 | | Code: 97ffff3c 52800401 aa1303e0 97ffffa2 (b9400c00)
objdump -lSD u-boot | grep -C 12 ' 39d9c'
| Disassembly of section .text_rest: | ... | 39d84: f9400c36 ldr x22, [x1, #24] | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:544 | xhci_queue_command(ctrl, 0, udev->slot_id, ep_index, TRB_STOP_RING); | 39d88: d2800001 mov x1, #0x0 // #0 | 39d8c: 97ffff3c bl 39a7c <xhci_queue_command> | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:546 | event = xhci_wait_for_event(ctrl, TRB_TRANSFER); | 39d90: 52800401 mov w1, #0x20 // #32 | 39d94: aa1303e0 mov x0, x19 | 39d98: 97ffffa2 bl 39c20 <xhci_wait_for_event> | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:547 | field = le32_to_cpu(event->trans_event.flags); | 39d9c: b9400c00 ldr w0, [x0, #12] | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:548 | BUG_ON(TRB_TO_SLOT_ID(field) != udev->slot_id); | 39da0: b9494681 ldr w1, [x20, #2372] | 39da4: 6b40603f cmp w1, w0, lsr #24 | 39da8: 54000180 b.eq 39dd8 <abort_td+0x8c> // b.none | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:548 (discriminator 1) | 39dac: 90000143 adrp x3, 61000 <crc16_tab+0x170> | 39db0: 913d0863 add x3, x3, #0xf42 | 39db4: 52804482 mov w2, #0x224 // #548 | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:549 (discriminator 1) | BUG_ON(TRB_TO_EP_INDEX(field) != ep_index); | 39db8: b0000181 adrp x1, 6a000 <names.0+0x11cb>
not immediately obvious to me what's the problem. x0 looks valid before the ldr.
x0 in the splat is | x0 : 0000000000000000 x1 : 00000000000003e8 so, I think xhci_wait_for_event() returns NULL .
I found this device locally: New USB device found, idVendor=174c, idProduct=55aa, bcdDevice= 1.00 Product: ICY BOX IB-366StU3+B
I will see if I can reproduce the problem on iMX8MP DWC3 too, unless someone wants to dig into it first, which might expedite the fix.
On 2023-03-02 22:05:43 +0100, Marek Vasut wrote:
On 3/2/23 19:51, Janne Grunau wrote:
On 2023-03-02 18:33:15 +0100, Marek Vasut wrote:
On 3/2/23 10:14, Janne Grunau wrote:
On 2023-03-01 23:51:14 +0100, Marek Vasut wrote:
On 3/1/23 21:34, Simon Glass wrote:
+Marek Vasut +Bin Meng +Mark Kettenis +Tom Rini
On Wed, 1 Mar 2023 at 08:12, bluetail a-development+asahi@posteo.de wrote: > > Essentially, I connect a mass-storage device to the USB-C port of a Mac > Mini 2020 (M1), and it leads to the issue in the attachment. > I was able to reproduce it with Icy Box IB-3810 and ICY BOX IB-3805. > Initially I thought this issue was only for some devices (also attached > here) https://github.com/AsahiLinux/u-boot/issues/4 but it appears this > might be a issue that is with many devices. > > If you need any more information, please feel free to ask. I am very > eager to have this issue fixed because it seems to be a very broad issue > with mass media storage in general. > uname-r returns 6.1.0-asahi-2-2-edge-ARCH
Would it be possible to check whether current u-boot/master works any better
Reproduced with b0eda49bc9b0 ("Merge tag 'u-boot-at91-fixes-2023.04-a' of https://source.denx.de/u-boot/custodians/u-boot-at91") and Icy Box IB-3804-C31 (same design as IB-3805/IB-3810 but just a single 4 port USB3 hub + 4 independent asmedia usb3 to sata converters).
| scanning bus usb@b02280000 for devices... Device NOT ready | Request Sense returned 02 3A 00 | Device NOT ready | Request Sense returned 02 3A 00 | Resetting EP 0... | WARN halted endpoint, queueing URB anyway. | Unexpected XHCI event TRB, skipping... (c9208350 0000010f 13000000 04008401) | "Synchronous Abort" handler, esr 0x96000005 | elr: 000000000003934c lr : 000000000003934c (reloc) | elr: 0000010fcd24034c lr : 0000010fcd24034c
Could you decode the trace and check where exactly this exception occurred ?
It should be enough to run "aarch64-...-objdump -lSD u-boot | less" on the U-Boot which matches the one which generated the trace, and then look up the lr/elr address in that trace. That should point you to the exact place in code where the exception occurred .
Slightly different binary due to unrelated chnages:
| scanning bus usb@702280000 for devices... 1 USB Device(s) found | scanning bus usb@b02280000 for devices... 1 USB Device(s) found | scanning bus usb@f02280000 for devices... 1 USB Device(s) found | scanning bus usb@1302280000 for devices... 2 USB Device(s) found | scanning bus usb@702280000 for devices... 1 USB Device(s) found | scanning bus usb@b02280000 for devices... Resetting EP 0... | WARN halted endpoint, queueing URB anyway. | Unexpected XHCI event TRB, skipping... (c92247b0 0000010f 13000000 02008400) | "Synchronous Abort" handler, esr 0x96000005 | elr: 0000000000039d9c lr : 0000000000039d9c (reloc) | elr: 0000010fcd240d9c lr : 0000010fcd240d9c | x0 : 0000000000000000 x1 : 00000000000003e8 | x2 : 0000000000000040 x3 : 000000000000003f | x4 : 0000010fc9223040 x5 : 0000010fc921ef90 | x6 : 0000000000001800 x7 : 00000000300c0300 | x8 : 0000000000000424 x9 : 0000000000000008 | x10: 00000000ffffffe8 x11: 0000000000000010 | x12: 0000000000010000 x13: 0000000000000001 | x14: 0000010fc91ba320 x15: 0000000000000021 | x16: 0000010fcd23addc x17: 0000000000000040 | x18: 0000010fc91e7d70 x19: 0000010fc9223040 | x20: 0000010fc9234b20 x21: 0000000000000002 | x22: 0000010fc9233790 x23: 0000000000000080 | x24: 0000000000000000 x25: 0000010fc91b9d00 | x26: 0000010fc91b9d00 x27: 0000010fc9233790 | x28: 0000000000000000 x29: 0000010fc91b99b0 | | Code: 97ffff3c 52800401 aa1303e0 97ffffa2 (b9400c00)
objdump -lSD u-boot | grep -C 12 ' 39d9c'
| Disassembly of section .text_rest: | ... | 39d84: f9400c36 ldr x22, [x1, #24] | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:544 | xhci_queue_command(ctrl, 0, udev->slot_id, ep_index, TRB_STOP_RING); | 39d88: d2800001 mov x1, #0x0 // #0 | 39d8c: 97ffff3c bl 39a7c <xhci_queue_command> | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:546 | event = xhci_wait_for_event(ctrl, TRB_TRANSFER); | 39d90: 52800401 mov w1, #0x20 // #32 | 39d94: aa1303e0 mov x0, x19 | 39d98: 97ffffa2 bl 39c20 <xhci_wait_for_event> | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:547 | field = le32_to_cpu(event->trans_event.flags); | 39d9c: b9400c00 ldr w0, [x0, #12] | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:548 | BUG_ON(TRB_TO_SLOT_ID(field) != udev->slot_id); | 39da0: b9494681 ldr w1, [x20, #2372] | 39da4: 6b40603f cmp w1, w0, lsr #24 | 39da8: 54000180 b.eq 39dd8 <abort_td+0x8c> // b.none | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:548 (discriminator 1) | 39dac: 90000143 adrp x3, 61000 <crc16_tab+0x170> | 39db0: 913d0863 add x3, x3, #0xf42 | 39db4: 52804482 mov w2, #0x224 // #548 | /home/janne/src/asahi/u-boot/drivers/usb/host/xhci-ring.c:549 (discriminator 1) | BUG_ON(TRB_TO_EP_INDEX(field) != ep_index); | 39db8: b0000181 adrp x1, 6a000 <names.0+0x11cb>
not immediately obvious to me what's the problem. x0 looks valid before the ldr.
x0 in the splat is | x0 : 0000000000000000 x1 : 00000000000003e8 so, I think xhci_wait_for_event() returns NULL .
Indeed, I confused myself earlier since I saw abort_td() finish once. This is clearly buggy code. 'xhci_wait_for_event(ctrl, TRB_TRANSFER);' returns NULL on timeouts so the event dereferencing after that needs to be inside an 'if (event) {}'.
This fixes not the problem as we hit now the 'BUG()' at the end of xhci_wait_for_event() for TRB_COMPLETION:
| scanning bus usb@b02280000 for devices... Resetting EP 0... | WARN halted endpoint, queueing URB anyway. | Unexpected XHCI event TRB, skipping... (c92247b0 0000010f 13000000 02008400) | XHCI timeout on event type 33... cannot recover. | BUG at drivers/usb/host/xhci-ring.c:496/xhci_wait_for_event()! | BUG! | resetting ..
At least an improvement in the error reporting.
I found this device locally: New USB device found, idVendor=174c, idProduct=55aa, bcdDevice= 1.00 Product: ICY BOX IB-366StU3+B
I will see if I can reproduce the problem on iMX8MP DWC3 too, unless someone wants to dig into it first, which might expedite the fix.
That seems to be a different asmedia usb to sata bridge as it is only 5 gbps instead of 10 gbps. Still worth trying.
Janne
